Slot: HOTP¶

An HOTP (HMAC-Based One-Time Password) slot generates a numeric code from a shared secret and types it as keyboard input when triggered.

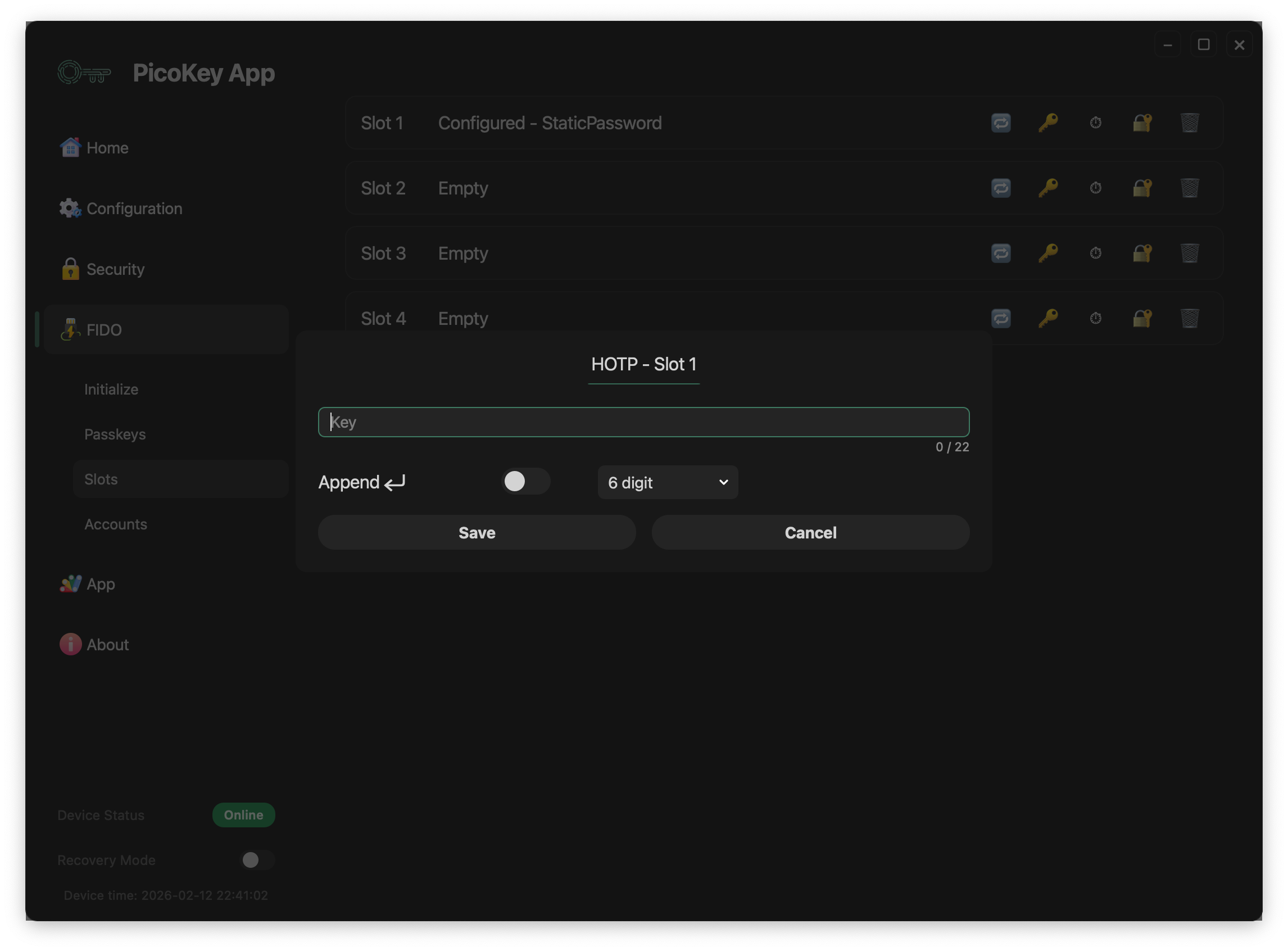

HOTP slot

Overview¶

The device stores a shared secret and uses it to generate HOTP codes when the slot is activated. It types each code through its USB keyboard interface, and a remote system verifies the code using the same secret.

Activation mechanism¶

The HOTP slot is activated through the OTP / button interface.

Press the BOOTSEL button N times, where N is the slot number. The device then generates the next HOTP value and types it into the host as keyboard input.

Note

No dedicated software is required on the host beyond USB HID keyboard support.

Slot configuration¶

Key¶

Enter the shared secret used to generate HOTP values. The device stores it securely and does not return it after setup; the slot implementation also limits its maximum length.

Warning

If the secret is lost, the HOTP sequence cannot be regenerated or validated.

Number of digits¶

Choose how many digits the generated code contains:

Supported values:

6 digits
8 digits

Note

The verifier must be configured to expect the same number of digits.

Append Enter¶

When enabled, the device sends Enter after the code, which can submit a form automatically.

Tip

Enable this option when authenticating into login forms or terminals.

Save and cancel¶

Save stores the HOTP configuration permanently.
Cancel discards the changes.

Danger

Saving overwrites any existing slot configuration.

Security considerations¶

Each activation generates a new code. The device keeps the shared secret private and emits the code only as keyboard input.

Warning

HOTP counters must remain synchronized with the verification system.

Typical use cases¶

Use HOTP slots for:

Two-factor authentication systems
Legacy systems without TOTP support
Offline authentication scenarios
Environments requiring keyboard-based OTP input

Tip

Ensure proper counter resynchronization policies on the server side.

Limitations¶

HOTP uses a counter rather than time, so the device and verifier can become desynchronized. The verifier must check each code, and the device emits codes only through the keyboard interface.

Note

For time-based OTP, consider using TOTP-capable solutions if available.
