Pico HSM Cipher

This page documents HSM > Management > Cipher in PicoKey App.

The Cipher tab executes crypto operations using an existing key (Key ID).

Cipher sign

Prerequisite

Before running cipher operations:

  1. Go to HSM > Management.
  2. Enter PIN.
  3. Click Unlock.
  4. Wait until keys are loaded.
  5. If needed, expand Session and use Reload / Change PIN.
  6. Use a valid Key ID.

HSM unlock HSM reload

Main controls

  • Operation: Sign, Decrypt, Encrypt, MAC, KDF
  • Algorithm: available values depend on key type and selected operation
  • Key ID: key handle used by the operation
  • I/O flow: File flow or Text box flow
  • Run Cipher: executes the selected operation

I/O flow

Two input/output modes are available.

File flow

Use files as input and output.

Cipher file flow

Behavior:

  • Input is read from Input file (or drop zone)
  • Output is written to Output file
  • Browse buttons select input/output paths

Text box flow

Use a single text area for both input and output.

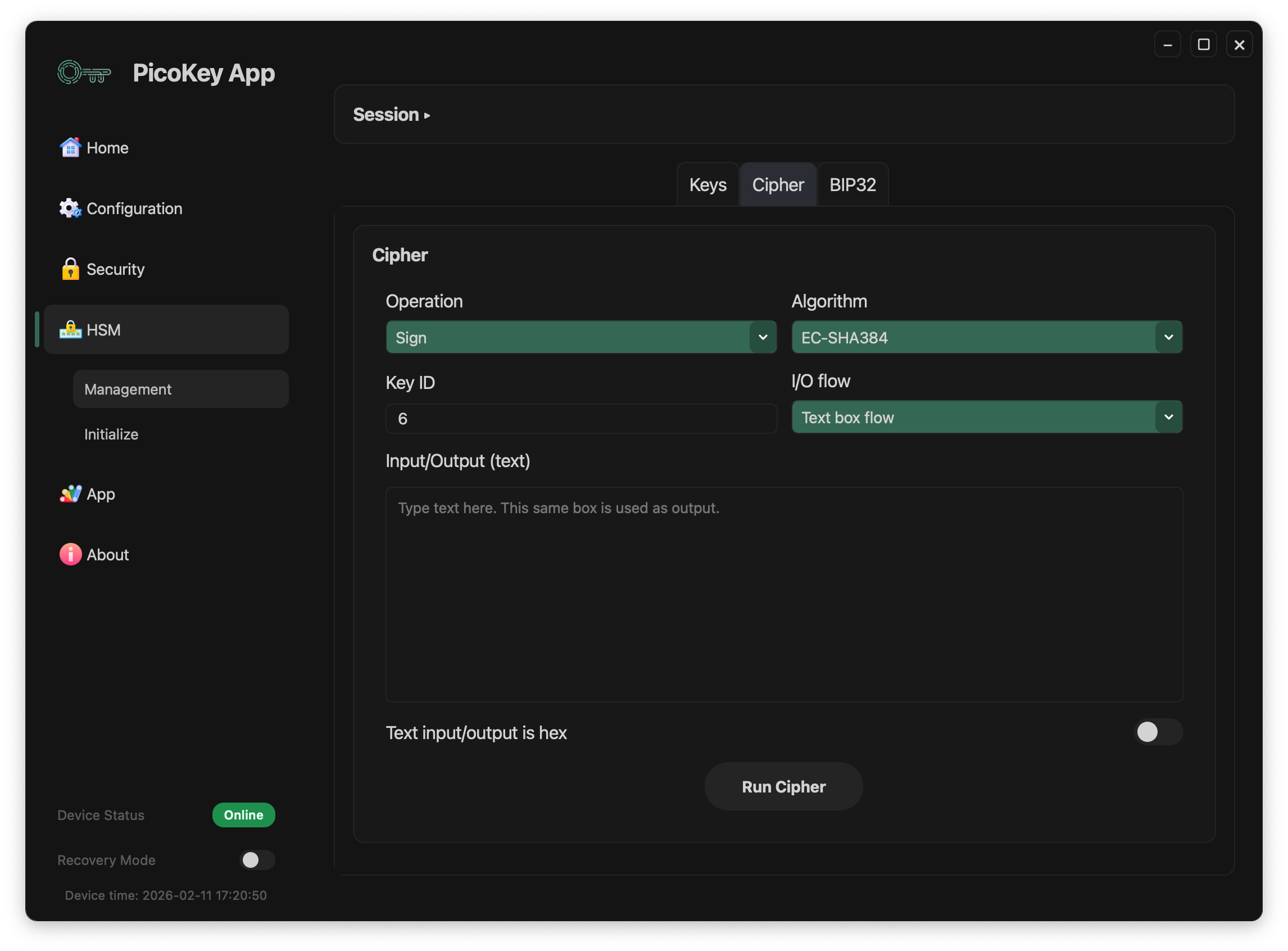

Cipher text flow

Behavior:

  • You write plaintext/data/signing input in the text box
  • After execution, the same box is replaced with the result
  • The Text input/output is hex toggle switches between plain string mode and hex mode

Operation-specific fields

  • Encrypt/Decrypt with AEAD/stream-like modes can require IV / Nonce (hex) and optional AAD (text or hex).
  • MAC uses file/text input and writes tag output.
  • KDF can include Output length (bytes) and, for PBKDF2, PBKDF2 iterations.

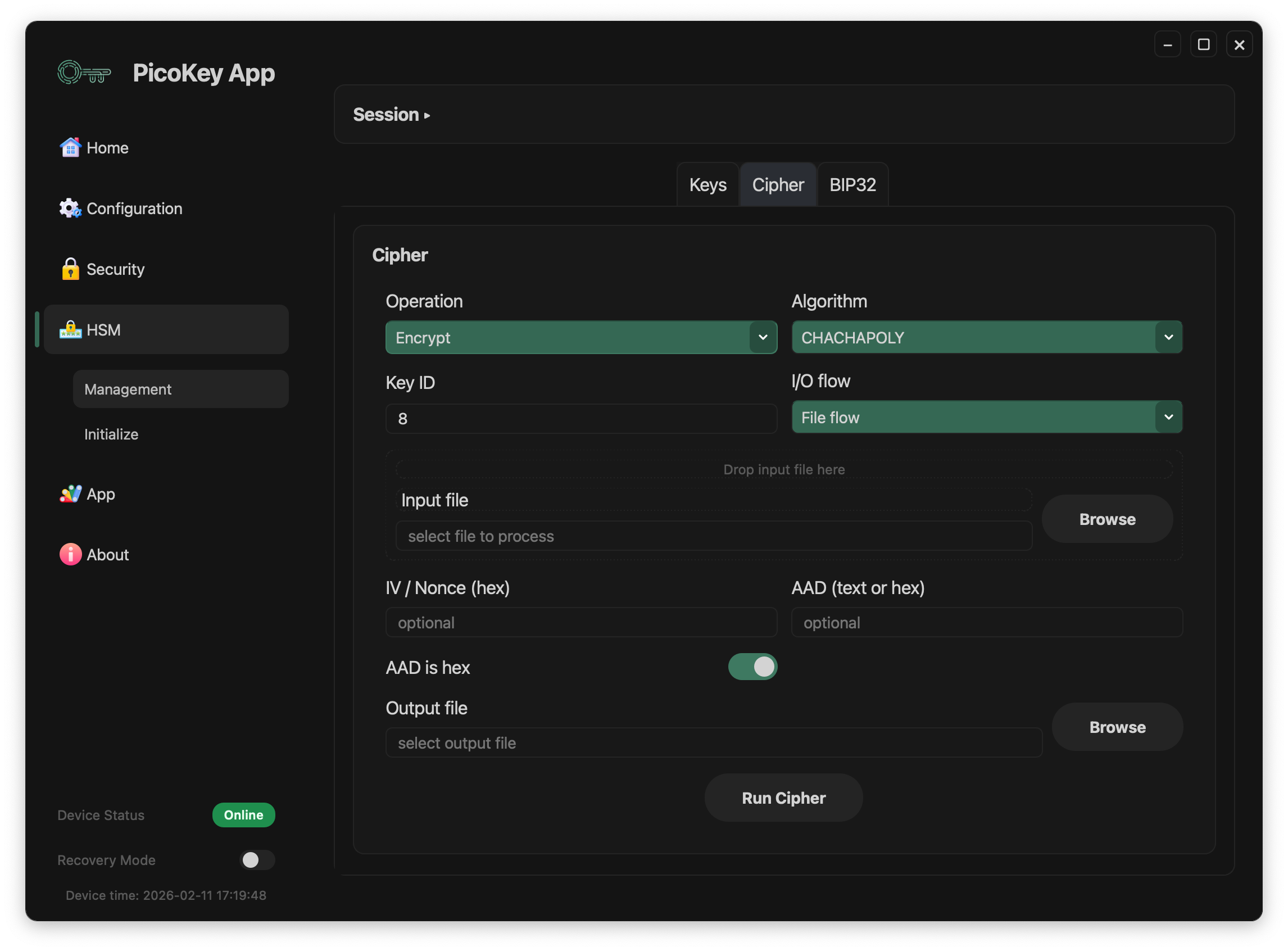

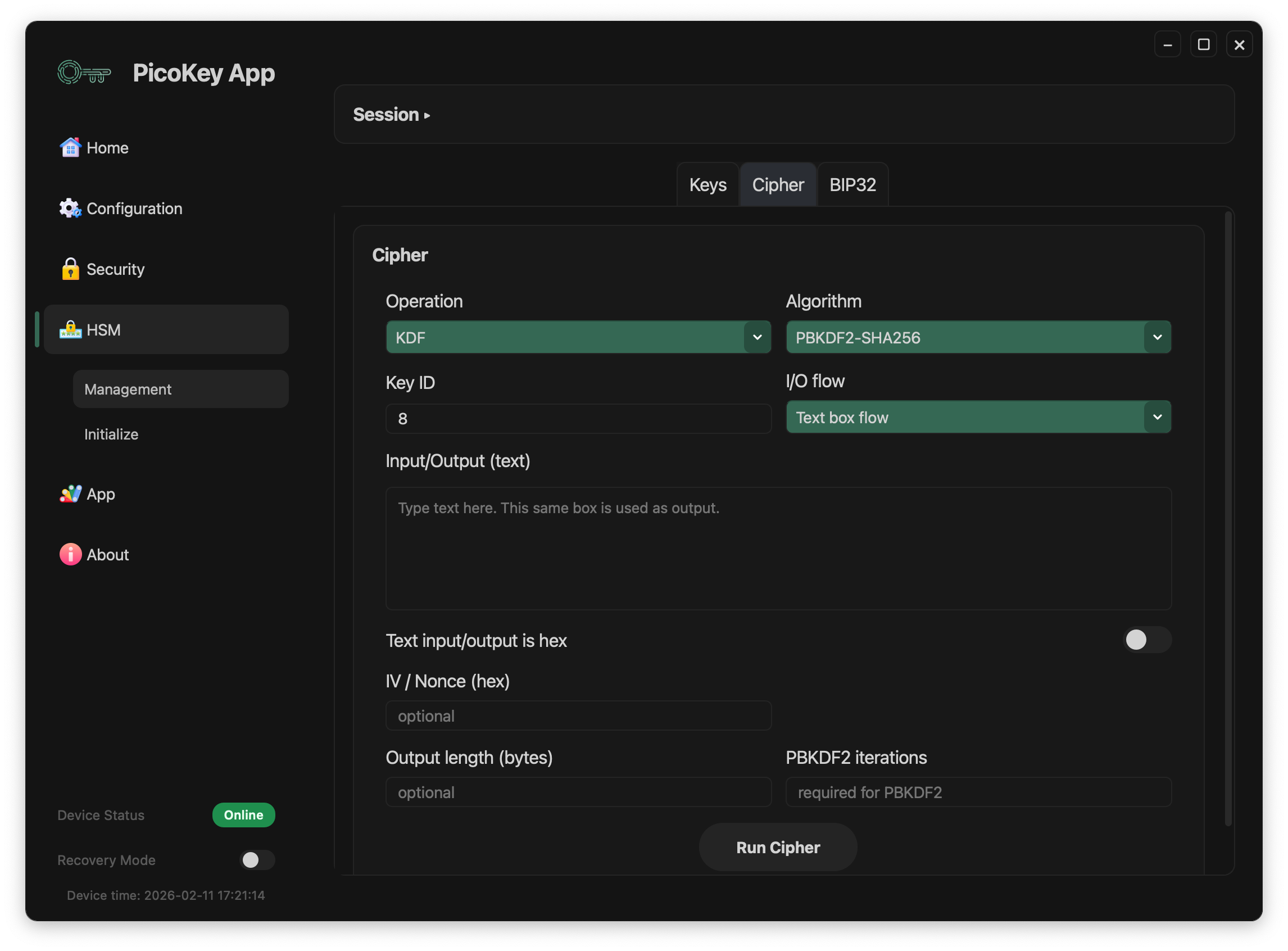

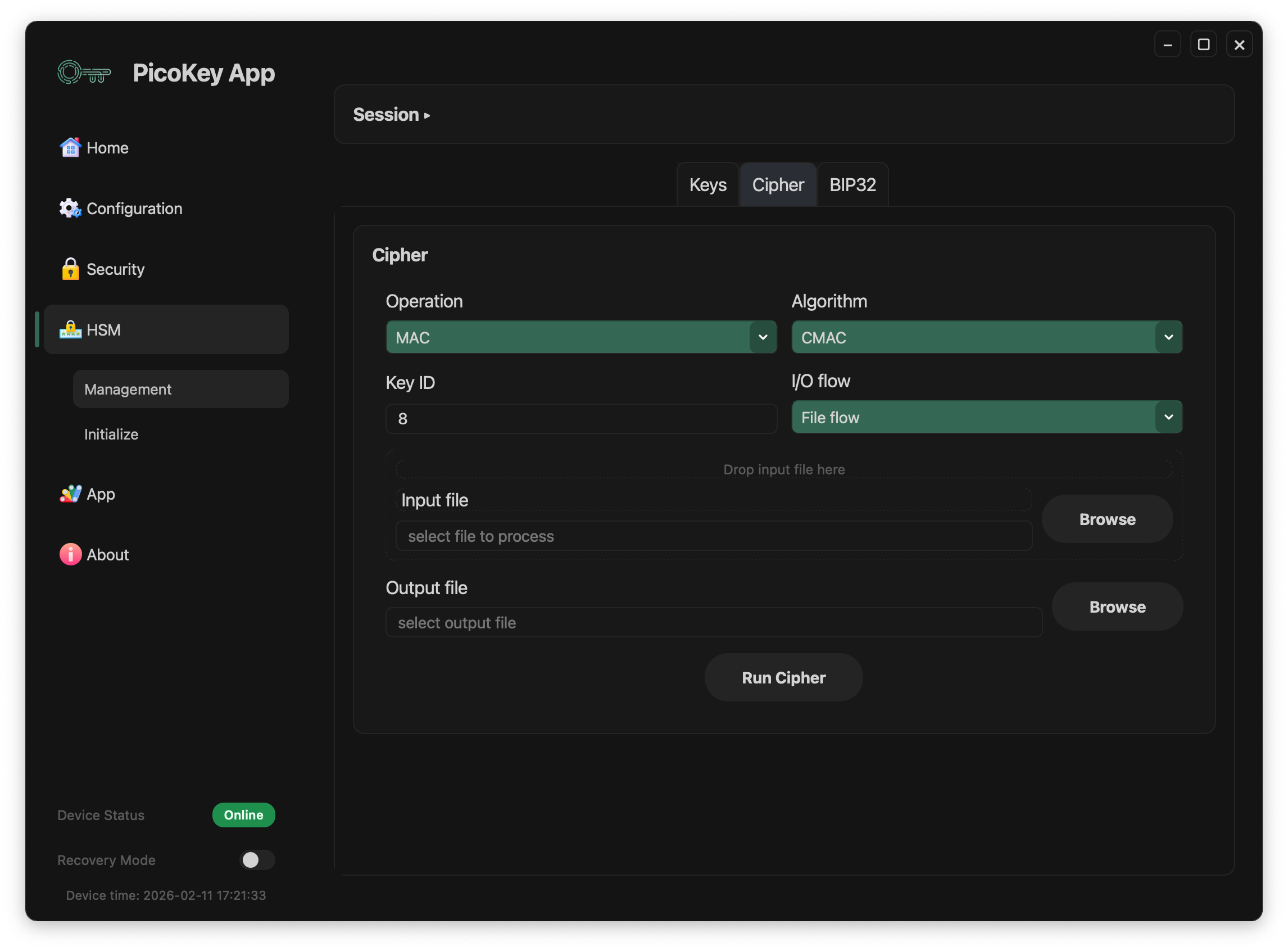

Cipher encrypt Cipher decrypt Cipher decrypt RSA Cipher MAC Cipher KDF

Algorithm availability by key type

EdDSA keys (ed25519, ed448)

  • Only Sign is available.
  • The only signature algorithm is EDDSA.

Other ECC keys

  • Sign supports:
  • EC-RAW
  • EC-SHA1
  • EC-SHA224
  • EC-SHA256
  • EC-SHA384
  • EC-SHA512

RSA keys

  • Sign supports:
  • RSA-RAW
  • RSA-PKCS1
  • RSA-PKCS1-SHA1
  • RSA-PKCS1-SHA224
  • RSA-PKCS1-SHA256
  • RSA-PKCS1-SHA384
  • RSA-PKCS1-SHA512
  • RSA-PSS
  • RSA-PSS-SHA1
  • RSA-PSS-SHA224
  • RSA-PSS-SHA256
  • RSA-PSS-SHA384

  • RSA-PSS-SHA512

  • Decrypt supports:

  • RSA-RAW
  • RSA-PKCS1
  • RSA-OAEP

AES keys (symmetric keys)

  • Encrypt / Decrypt support:
  • CHACHAPOLY
  • AES-ECB
  • AES-CBC (input length must be a multiple of 16 bytes)
  • AES-OFB
  • AES-CFB
  • AES-GCM
  • AES-CCM
  • AES-CTR

  • AES-XTS

  • MAC supports:

  • CMAC
  • HMAC-SHA1
  • HMAC-SHA224
  • HMAC-SHA256
  • HMAC-SHA384

  • HMAC-SHA512

  • KDF supports:

  • HKDF-SHA256
  • HKDF-SHA384
  • HKDF-SHA512
  • PBKDF2-SHA1
  • PBKDF2-SHA224
  • PBKDF2-SHA256
  • PBKDF2-SHA384
  • PBKDF2-SHA512
  • X963-SHA1
  • X963-SHA224
  • X963-SHA256
  • X963-SHA384
  • X963-SHA512

Note

If a selected key type does not support an operation, the corresponding algorithms are not offered in the selector.
